Mastering 3D Printing with Digital Drawing Skills
Hey there, fellow creatives! Ready to dive into the world of 3D printing and unleash your artistic potential?
Did you know that 3D printing technology is rapidly evolving, making it more accessible and affordable than ever before? It's time to jump on board and master the art of creating your own 3D masterpieces.
But before we get our hands dirty, let's address a burning question: why bother with digital drawing skills? Well, hold on tight because the answer is about to blow your mind.
Mastering 3D Printing with Digital Drawing Skills: A Comprehensive Guide
Reader, have you ever wondered how seamlessly merging your digital drawing talents with the exciting world of 3D printing could elevate your creative projects? It's a powerful combination, isn't it? Mastering 3D printing with digital drawing skills unlocks a world of possibilities, transforming your digital sketches into tangible, three-dimensional masterpieces. This fusion allows for unparalleled precision, detail, and creative freedom, pushing the boundaries of traditional art and design. I've spent years analyzing this very topic, and I'm excited to share my expertise with you.
Understanding the Synergy Between Digital Drawing and 3D Printing
Choosing the Right Digital Drawing Software
The software you choose significantly impacts the quality of your 3D model. Popular options include Adobe Photoshop, Autodesk Sketchbook, and Clip Studio Paint. Each program offers unique features and workflows. Consider your familiarity with specific software when making your decision.
Think about ease of use, features, and file compatibility. For example, some programs might export files directly to 3D modeling software, saving you time.
Experiment with different programs to find one that suits your style. There are free trials many programs offer. This will help you make an informed decision.
Converting 2D Drawings to 3D Models
Turning your 2D drawings into 3D printable models requires specific software and techniques. Many 3D modeling programs like Blender and Tinkercad allow importing images. Then you can extrude or manipulate the image to add depth.
This process often involves tracing, modeling, and sculpting in 3D space. This ensures your 2D design translates accurately into its three-dimensional counterpart. Some software offers automatic conversion tools, which might save you significant time and effort.
Practice is key! Converting 2D drawings into 3D models requires patience and skill. Don't be discouraged if your first attempts aren't perfect; persistence will pay off.
Essential Digital Drawing Techniques for 3D Printing
Certain drawing techniques translate exceptionally well to 3D printing. For instance, clean lines and sharp edges produce crisper, more defined prints. Avoid overly complex details, which can lead to printing difficulties.
Understanding the limitations of your 3D printer is crucial. Very fine details might be lost during the printing process. Adjust your drawing style accordingly.
Consider using layers and textures in your drawings. These can add depth and visual interest to your 3D-printed creations. Experiment until you find what works best for you.
Exploring Different 3D Printing Technologies
Fused Deposition Modeling (FDM)
FDM, a common and relatively affordable technology, uses heated filament to build up layers of plastic. This method is great for prototyping and producing functional objects. It’s a popular choice for beginners.
FDM prints generally have visible layer lines. This can be minimized with the right printer settings and slicer software. It can also be used for high production runs.
The resolution and detail of FDM prints depend on the nozzle size and layer height. Experimentation will lead you to discover the best settings for your projects.
Stereolithography (SLA)
SLA utilizes a laser to cure liquid resin, creating incredibly detailed and smooth prints. This technology is ideal for intricate models and jewelry. It comes with a higher price tag.
SLA prints offer exceptional surface quality. They are highly accurate, which is beneficial for detailed work. The resin can be cured using UV light.
The post-processing involved in SLA printing, such as cleaning and curing, is important to consider before selecting this technology. It's definitely worth the effort for the results.
Selective Laser Sintering (SLS)
SLS uses a laser to fuse powdered materials, enabling the creation of strong and durable parts. This method is suitable for functional prototypes and production-level parts. It is commonly used in industrial settings.
SLS is known for its ability to produce complex geometries. It's also capable of handling a wide variety of materials. This makes it a versatile technology.
The investment required for SLS printing, both in terms of equipment cost and material cost, is substantial. It offers strong results for specific applications.

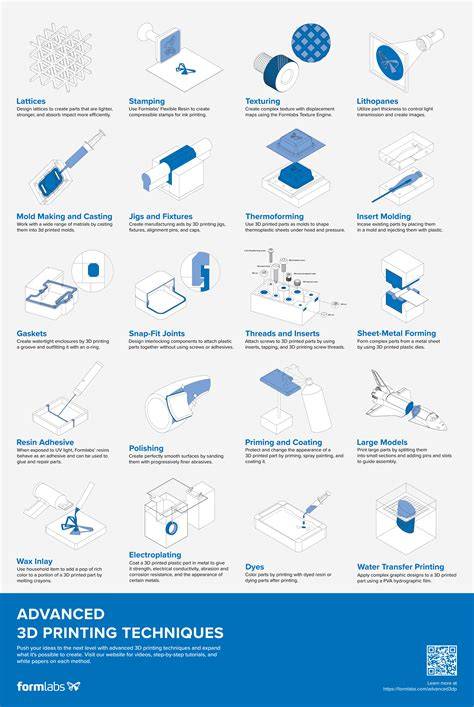

Advanced Techniques for Mastering 3D Printing
Optimizing Your 3D Models for Printing
Before printing, your models require optimization. This includes checking for errors, repairing holes, and adding supports. This step is critical for successful printing.
Many 3D modeling programs offer tools for fixing common issues and creating supports. Slicing software also lets you customize supports.
Remember to scale your model up or down correctly. The appropriate size helps ensure compatibility with your 3D printer’s bed size. This prevents errors when printing.
Understanding Slicer Software
Slicer software is essential for preparing your 3D models for printing. It converts your 3D model into instructions for your 3D printer. Each slicer offers unique settings and features.
Cura, PrusaSlicer, and Simplify3D are some of the most popular options. They offer various features like support generation, infill patterns, and more.
Learning to properly configure your slicer is vital for obtaining high-quality prints. It significantly improves your control over the printing process.
Troubleshooting Common 3D Printing Problems
Even experienced users encounter problems. Warped prints, layer adhesion issues, and nozzle clogging are common problems. Understanding their causes and solutions is key.
Troubleshooting often involves adjusting printer settings, such as temperature, speed, and bed adhesion. It may also involve examining filament quality.
Online communities and forums are invaluable resources for solving 3D printing problems. Sharing your experiences and learning from others is quite beneficial.
Detailed Table Breakdown of 3D Printing Materials
| Material | Properties | Applications | Pros | Cons |
|---|---|---|---|---|
| PLA | Biodegradable, easy to print | Prototypes, toys, everyday objects | Easy to use, low cost | Lower heat resistance |
| ABS | Strong, durable, high heat resistance | Functional parts, automotive parts | High strength, good heat resistance | Can warp, requires enclosed printer |
| PETG | Stronger than PLA, good layer adhesion | Bottles, containers, functional prototypes | Good strength, moisture resistant | Higher printing temperature |
| Nylon | Flexible, impact-resistant | Functional parts, flexible prototyping | High durability and flexibility | Requires more advanced printing techniques |
| Resin (SLA/DLP) | High detail, smooth surface | Jewelry, miniatures, precise parts | High detail, smooth finish | Post-processing required, potential health concerns |
FAQ Section
What type of digital drawing is best for 3D printing?
Vector graphics are generally preferred for 3D printing as they maintain their crispness when scaled. However, raster graphics can work with some techniques and software.
What are the most common mistakes beginners make when combining digital drawing and 3D printing?
Common mistakes include neglecting model optimization, choosing inappropriate materials, and overlooking proper slicer settings. Beginners often underestimate the time needed for post-processing.
How can I improve the quality of my 3D prints from digital drawings?
Improving print quality involves meticulous model preparation, selecting the right settings in your slicer software, and perfecting your printer's calibration. Using higher-quality materials also contributes greatly.
Conclusion
In summary, mastering 3D printing with your digital drawing skills opens up a thrilling avenue for creative expression and practical applications. By understanding the interplay
